85C 1000Hz Single Axis Inclinometer Analog Level Transmitter LCA310T
Premium Products
85C 1000Hz Single Axis Inclinometer Analog Level Transmitter LCA310T
1
2
3
4
Model Number :LCA310T
Place of Origin :Guangdong, China
Brand Name :RION
Packaging Details :1pcs/box ,100pcs/ctn
Supply Ability :30000 Piece/Pieces per Month
Price :$80.00/Pieces >=1 Pieces
Certification :CE
Usage :Position Sensor
Theory :Other
Output :Analog SENSOR
output :voltage output
Axis :single axis
resolution :0.05 degree
Input voltage :DC 5V
working temp. :-40 to +85℃
storage temp. :-55 to +100℃
weight :90g
Waterproof :IP67
Port :Shenzhen
Contact Now
LCA310T Single Axis Cheap Inclinometer Analog Level Transmitter
General Description
The LCA310T series inclinometer which developed by Rion Company is a small volume, low-cost single-axis tilt sensor, the output voltage through an internal secondary linearity correction, is a linearity voltage output tilt sensor, mainly for the application market where with high-volume and cost restrictive. Built-in the latest MEMS production technology inclination unit, small size, low power consumption, and high consistency and stability of MEMS technology, working temperature up to the industry level -40 to +85, is a ultra-high cost-effective inclination modules.
This product adopts non-contact measuring principle, can real-time output the current posture inclination, simple to use, no need to find the relative variation of the two surface for mounting.Small size, strong ability of resisting external electromagnet interference,strong ability to withstand shock and vibration. It Is the ideal choice for industrial equipment and platform measuring attitude !
Features:
Single-Axis Inclinometer Full measuring range anyone within 360° optional
Accuracy: refer to the technical data Wide voltage input: 9~36V
Output interface :0~5V Wide temperature working: -40~+85°C
IP67 protection class Highly anti-vibration performance >3500g
Resolution: 0.05° Small Volume : 55×37×24mm(customized)
Application:
Electric blind man chair levelingCloud deck operating monitor
Satellite antenna positioning Medical equipment leveling
Car Chassis Measurement Four - wheeled positioning system
standardconfiguration: 1 meter wearproof,grease proofing,wide temperature,Shielded cables 4*0.3mm2
Weight
90g (exclude cable)

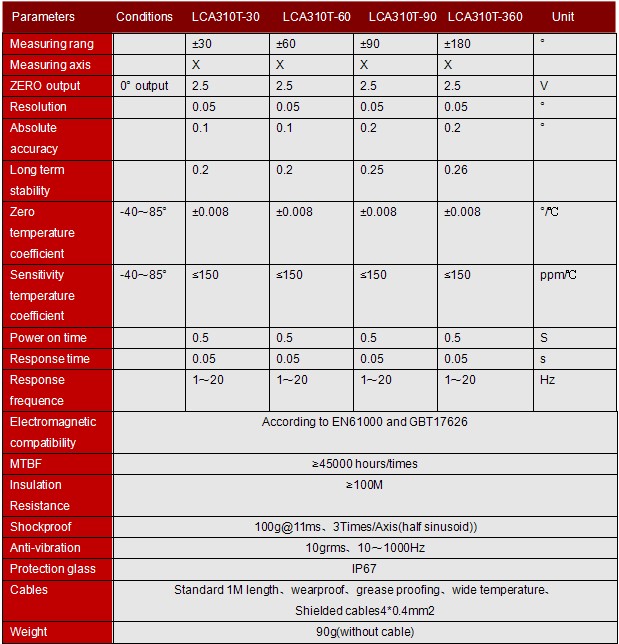

* This performance parameter only lists ± 30 °, ± 60 °, ± 90 °, ± 360 ° series as a reference, for other measurement ranges, please refer to the adjacent parameters.
Measuring Directions&Fix
Dimension
