HCA726/716 Dual Axis Tilt Sensor Inclinometer 100M ISO Switching Transducer

Name: HCA726716 Dual Axis Tilt Sensor Inclinometer 100M ISO Switching Transducer
Brand: RION
Price: 250.00 USD

China HCA726/716 Dual Axis Tilt Sensor Inclinometer 100M ISO Switching Transducer wholesale

Model Number : HCA726/716

Place of Origin : Guangdong, China

Brand Name : RION

Packaging Details : 1pcs/box ,100pcs/ctn

Price : $250.00/Pieces 1-9 Pieces

Certification : CE, ISO

MOQ : 1

Payment Terms : T/T, PayPal

Supply Ability : 5000/month

Delivery Time : 7 days for samples

Usage : Position Sensor

Power on time : 0.5S

Resolution : 0.001deg

Axis : single/dual

Response frequency : 20HZ

Interface : TTL / RS232 / RS485 optional

waterproof : IP67

Weight : ≤150g (including 1 meter cable)

Contact Now

100M ISO Dual Axis Tilt Sensor Inclinometer Switching Transducer

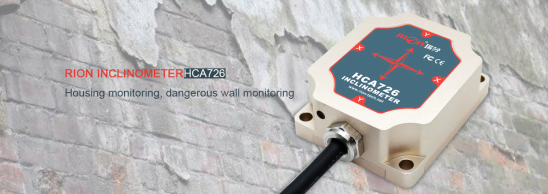

HCA716S/HCA726S is a small volume full temperature compensated high-precision single / dual-axis inclinometer developed by RION Technology for industrial field control. It adopts RS485 / RS232 serial access interface. Built-in high-precision 24bit A / D differential converter, through the 5th order filtering algorithm, can measure the tilt and pitch angle of the sensor output relative to the horizontal plane. The product integrates the latest technology main MEMS tilting unit, the measure range up to ±180°, and the full-scale accuracy is 0.01°, which can easily achieve dual-axis and single-axis tilt measurement. The product belongs to a real industrial grade product, with reliable and stable performance, good scalability, and multiple output options. It is suitable for the application of monitoring of ancient buildings, dilapidated buildings, ancient walls, etc., and large-scale high-precision measurement in industrial sites.

▶ SPECIFICATION

HCA716/HCA726		CONDITION	PARAMETERS					UNIT
Measure range			±10	±30	±60	±90	±180	°
Measure axis			X Y	X Y	X Y	X Y	X	axis
Resolution			0.001	0.001	0.001	0.001	0.001	°
Measure accuracy	MAXE	Room temp.	0.008	0.01	0.01	0.02	0.02	°
	RMSE	Room temp.	0.004	0.005	0.005	0.006	0.006	°
Zero Temp.coefficient		-40～85℃	±0.0005	±0.0005	±0.0005	±0.0005	±0.0005	°/℃
Sensitivity temp-coeffi		-40～85℃	≤0.01	≤0.01	≤0.01	≤0.01	≤0.01	%/℃
Power on time			0.5	0.5	0.5	0.5	0.5	S
Response frequency		20HZ
Interface		TTL / RS232 / RS485 optional
Communication protocol		RION 68 protocol / MODBUS RTU protocol optional
EMC		According to EN61000 and GBT17626
MTBF		≥98000 hours/times
Insulation Resistance		≥100MΩ
Shockproof		100g@11ms,3 Axial Direction (Half Sinusoid)
Anti-vibration		10grms,10～1000Hz
Protection grade		IP67
Cables		Standard configuration: 1m length, wear-resistant,oil-proof, wide temperature, shielded cable4*0.2mm2
Weight		≤150g (including 1 meter cable)

*This Technical data only list ± 15 °, ± 45°, ± 60 °, ± 180 ° series for reference, other measuring range please refer to the adjacent parameters .

▶ ELECTRONIC CHARACTERISTICS

PARAMETERS	CONDITIONS	MIN	STANDARD		MAX	UNIT
Power supply	Standard	9	12	24	36	V
Working current	No load		21	12		mA
Working temperature		-40			+85	℃
Store temperature		-40			+85	℃
