HDA436T High Precision Dynamic Inclinometer for Drilling Rigs Using CAN2.0 Slope Meter
▶ PRODUCT APPLICATION
★ Railway locomotive monitoring
★ Oil drilling equipment
★ Shield pipe jacking application
★ Geological equipment tilt monitoring
★ Underground drilling rig attitude navigation
★ Ship navigation attitude measurement
★ Shield pipe jacking application
★ Satellite communication vehicle attitude detection
★ Orientation measurement based on inclination angle
★ Various engineering machinery inclination measurement
Technical Data
| HDA436T | CONDITION | INDEX |
| Measure range | - | Roll ±180°, pitch ±90°, azimuth ±180° (initial value at power-down is 0°) |
| Measure axis | - | X axis / Y axis / Z axis |
| Resolution | - | 0.01° |
| Static accuracy | @25℃ | ± 0.05° |
| Dynamic accuracy(RMS) | @25℃ | ± 0.1° |
| Gyro | range | - | ±250°/s |
| Zero bias stability (10s mean) | - | 8.5°/h |
| Zero Bias Instability(allan) | - | 4.5°/h |
| Angle random walk coefficient(allan) | - | 0.25°/sqrt(h) |
| Acceleration | range | - | ±8g |
| Bias stability(10s mean) | - | 0.02mg |
| Bias instability(allan) | - | 0.005mg |
| Speed random walk coefficient(allan) | - | 0.005m/s/sqrt(h) |
| Zero point temp. coefficient | -40～85℃ | ±0.01°/℃ |
| Sensitivity temp. coefficient | -40～85℃ | ≤100ppm/℃ |
| Power-on startup time | 1S |
| Response time | 0.01S |
| Output signal | RS485/RS232/TTL |
| Electromagnetic compatibility | According to EN61000 and GBT17626 |
| MTBF | ≥ 98000 hours / time |
| Insulation resistance | ≥100 Megohm |
| Impact resistance | 100g @ 11ms,3 axial direction (half sinusoid) |
| Anti-vibration | 10grms,10～1000Hz |
| Waterproof level | IP67 |
| Cable | Standard without wiring, optional 2m M12 aviation plug with PVC unshielded cable |
| Weight | ≤165g (excluding cables) |
ELECTRICAL PARAMETERS
| PARAMETER | CONDITION | MIN | TYP | MAX | UNIT |
| Supply voltage | standard | 9 | 12 | 24 | 36 | V |
| Working current | without load | | 60mA(12V) | | mA |
| Operating temp | | -40 | | +85 | ℃ |
| storage temp | | -40 | | +85 | ℃ |
| | | | | | | |

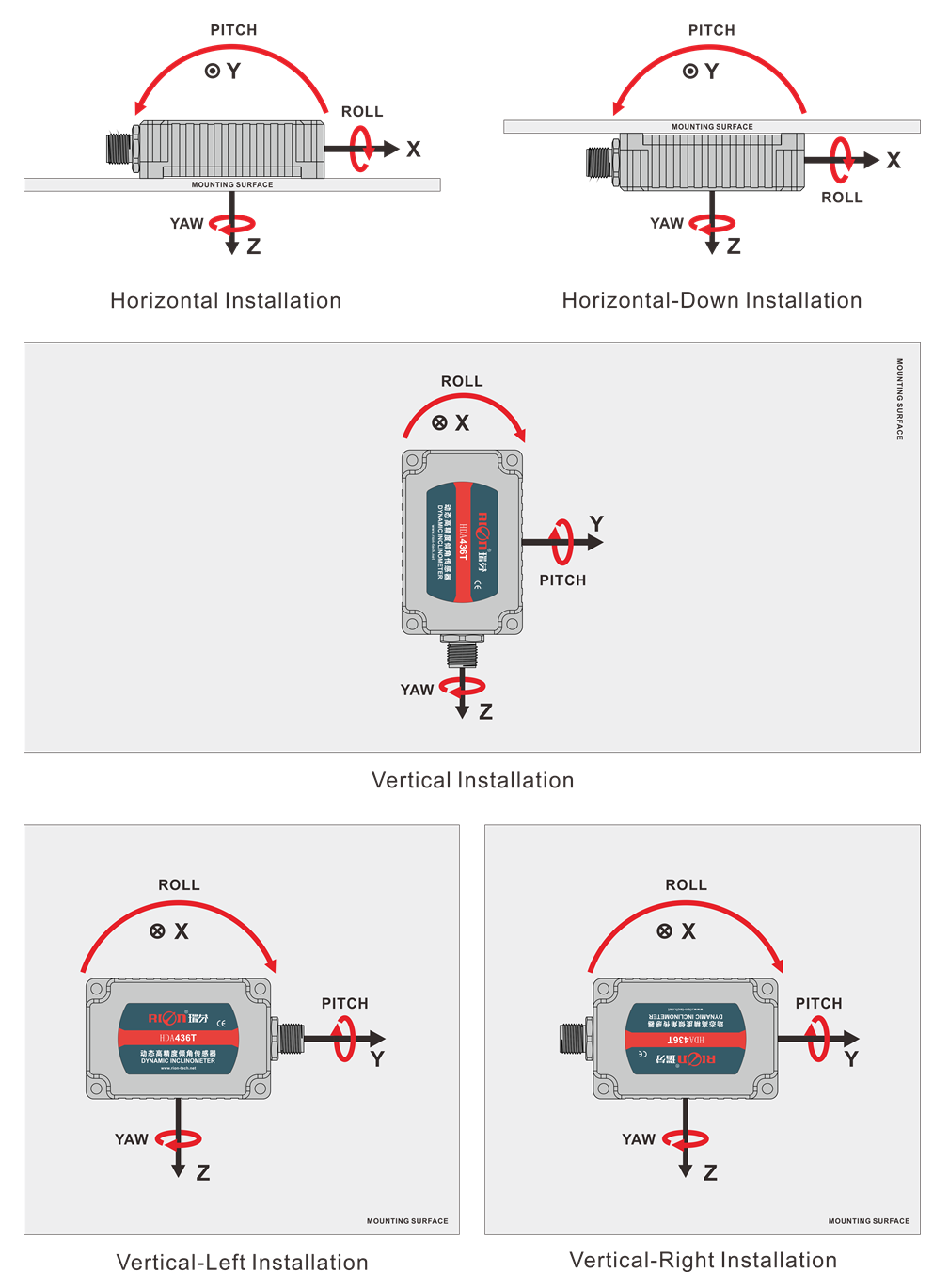

INSTALLATION METHOD
▶ MECHANICAL PARAMETERS
○ Connector: M12 aviation plug 5P connector
○ Protection level: IP67
○ Shell material: frosted aluminum alloy

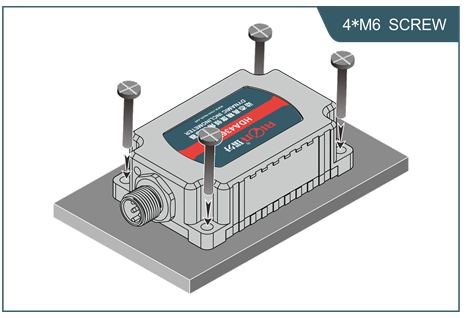

○ Installation: Four M4 screws
