Single Dual Axis Precise Level Angle Tilt Sensor Inclinometer For Medical Equipment

Name: Single Dual Axis Precise Level Angle Tilt Sensor Inclinometer For Medical Equipment
Brand: RION
Price: 1 USD

Brand Name : RION

Model Number : ACA826T-2-232

Certification : CE, ISO

Place of Origin : China

MOQ : 1

Price : negotiable

Payment Terms : T/T, PayPal

Supply Ability : 1000/month

Delivery Time : 10 days

Packaging Details : Carton

Resolution : 0.0005°

Accuracy : 0.002°

Long term stability : 0.01°

Zero temp coefficient : ±0.0002°/℃

Protection : IP67

Output : RS232/RS485/RS422/TTL

Weight : 235g

szie : L92×W48×H36mm

Contact Now

Precise Level Angle Control Sensor For Medical Equipment Single Dual Axis Large Measure Range Angle Control Sensor

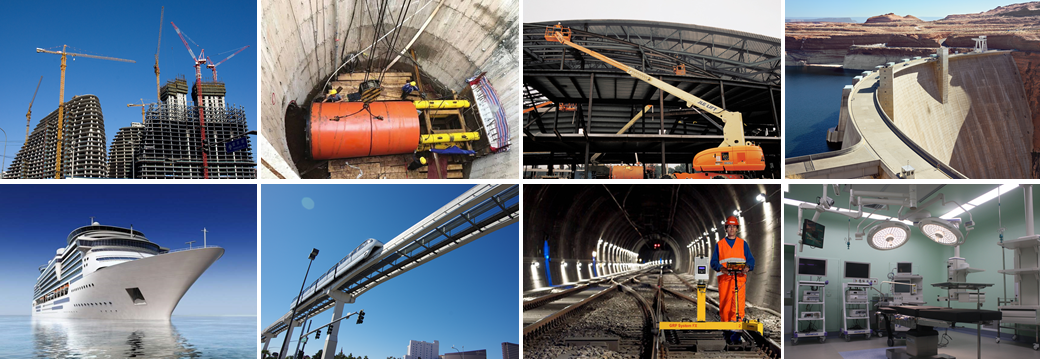

▶ APPLICATION

Engineering vehicles automatic leveling
Bridge & dam detection
Laser equipment position
Medical facilities angle control
Underground drill posture navigation
Railway gauging rule , gauge equipment leveling
Precise machine tool level control
Geological equipment inclined monitoring

▶ TECHNICAL DATA

ACA826T	CONDITIONS	PARAMETERS				UNIT
Measure range		±03	±10	±15	±30	°
Measure axis		X/XY	X/XY	X/XY	X/XY	axis
Resolution		0.0005	0.0005	0.0005	0.0005	°
Measure accuracy	@25℃	0.002	0.003	0.005	0.01	°
Long term stability		0.01	0.01	0.02	0.02
Zero temp coefficient	-40～85°	±0.0002	±0.0002	±0.0002	±0.0002	°/℃
Sensitivity temp coefficient	-40～85°	≤50	≤50	≤50	≤50	ppm/℃
Power on time		0.5	0.5	0.5	0.5	S
Response time		0.02	0.02	0.02	0.02	S
Output rate	5Hz,15Hz,35Hz,50Hz Can be setting
Ouput signal	RS232/RS485/RS422/TTL
EMC	According to EN61000 and GBT17626
MTBF	≥50000hours/times
Insulation Resistance	≥100M
Shockproof	100g@11ms,Times/Axis(half sinusoid)
Anti-vibration	10grms,10～1000Hz
Protection grade	IP67
Cables	Standard 1M length,wearproof,wide temperature, Shielded cables4*0.4mm2 air-plug connector
Weight	235g(without cable )

*This performance parameters only cover the measurement ranges of ±03°, ±10°,±15°, and ±30°. For other measurement ranges, please refer to the nearest parameters.

Single Dual Axis Precise Level Angle Tilt Sensor Inclinometer For Medical Equipment

▶ ELECTRONIC CHARACTERISTICS

PARAMETERS	CONDITIONS	MIN	STANDARD	MAX	UNIT
Power supply	standard	9	12,24	36	V
Power supply	customized		Other voltage		V
Working current	12V		40		mA
Working current	24V		22		mA
Working temperature		-40		+85	℃
Store temperature		-40		+85	℃

▶ Dimension

Single Dual Axis Precise Level Angle Tilt Sensor Inclinometer For Medical Equipment
