Dual Axis Pitch Roll Angle Precise Tilt Angle Meter For Medical Equipment

Name: Dual Axis Pitch Roll Angle Precise Tilt Angle Meter For Medical Equipment
Brand: RION
Price: 1 USD

Brand Name : RION

Model Number : ACA628T-20

Certification : CE, ISO

Place of Origin : China

MOQ : 1

Price : negotiable

Payment Terms : T/T, PayPal

Supply Ability : 1000/month

Delivery Time : 10 days

Packaging Details : Carton

Measure range : 1~60°

Measure axis : dual axis

Resolution : 0.0007°

Temperature drift : 0.0005°/℃

Long term stability : 0.01°~0.04°

Weight : 235g

Protection : IP67

power supply : 9~36v

Contact Now

Precise Tilt Angle Measure For Medical Equipment Dual Axis Pitch Roll Angle For Medical Device

ACA628T-N is a high-precision dual-axis inclinometer with full temperature compensation and current output. it adopts a high-precision 24bit A/D differential converter to ensure the current output linearity of the product, so the user does not need to make the linearity correction. it is stable, reliable and easy to use. The system integrates a high-resolution temperature sensor, coworking with the MCU, processing secondary temperature compensation, by which the full temperature zero drift can be achieved at 0.0005°/℃, and the accuracy at room temperature can reach 0.003° for small measure range. it output by 4~20mA comparing with voltage output, it can transmit much longer distance as 2km. The feature of non-contact installation makes this product compatible for different systems. Just fix the sensor on the surface of the object to be measured with screws, and then it automatically calculate the inclination angle of the object. It is convenient to install, easy to operate, robust to resist interference and vibration, it has prominent advantage against its counterparts.

▶ TECHNICAL DATA

ACA618T/628T-N		Conditions	Parameters				Unit
Measure range			±10	±30	±60	±90	°
Measure axis			X / XY	X / XY	X / XY	X / XY	axis
Zero output		0° output	12	12	12	12	mA
Resolution			0.0007	0.0007	0.0007	0.0007	°
Measure accuracy	MAXE	Room temp.	0.003	0.01	0.02	0.03	°
	RMSE	Room temp.	0.003	0.003	0.005	0.008	°
Zero Temp. coefficient		-40～85℃	0.0005	0.0005	0.0005	0.0005	°/℃
Sensitivity temp-coefficient		-40～85℃	≤50	≤50	≤50	≤50	ppm/℃
Power on time			0.5	0.5	0.5	0.5	S
Response frequency		20Hz
EMC		According to EN61000 and GBT17626
MTBF		≥98000 hours/times
Insulation Resistance		≥100MΩ
Shockproof		100g@11ms,3 axial direction (half sinusoid)
Anti-vibration		10grms,10～1000Hz
Protection grade		IP67
Cables		Standard configuration: 2m length, wear-resistant, wide temperature, shielded cable 7P * 6.8mm aviation connector, cable weight ≤200g
Weight		≤260g(without cable )

▶ FEATURES

Single axis inclination measurement
Measure Range :±1~±60° optional
Resolution: 0.001°
Temperature drift ±0.0008°/℃
Highly anti-vibration performance >2000g
Wide voltage input: 9~36V
Wide temperature working: -40~+85℃
IP67 protection grade

▶ APPLICATION

Engineering vehicles automatic leveling
Bridge & dam detection
Laser equipment position
Medical facilities angle control
Underground drill posture navigation
Railway gauging rule , gauge equipment leveling
Precise machine tool level control
Geological equipment inclined monitoring

Dual Axis Pitch Roll Angle Precise Tilt Angle Meter For Medical Equipment

▶ ELECTRICAL CONNECTION

SINGLE AXIS ELECTRICAL CONNECTION

Wire Color function

RED

WHITE

GREEN

BLACK

GRAY

DC11.5~36V

Power supply positive

Out X

X axis

output current

GND

Power supply negative

Signal GND

Dual Axis Pitch Roll Angle Precise Tilt Angle Meter For Medical Equipment

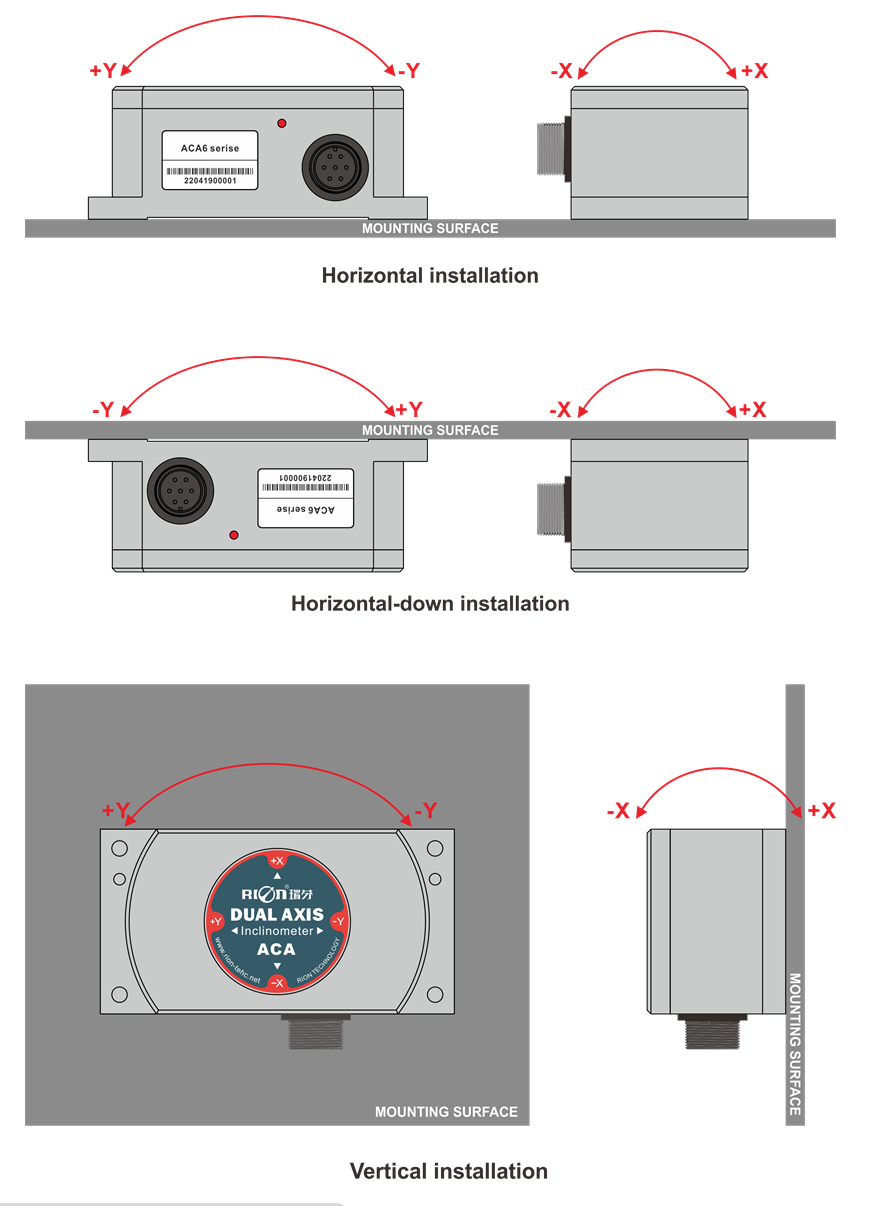

▶ PRODUCT INSTALLATION DIRECTION

Dual Axis Pitch Roll Angle Precise Tilt Angle Meter For Medical Equipment

▶ Dimension

Dual Axis Pitch Roll Angle Precise Tilt Angle Meter For Medical Equipment
